Vertical Honing Machines
DVSS 46 – 68 – SINGLE PASS VERTICAL MACHINE
The DVSS series of vertical honing machines features PLC control and accessories such as: rotary table with servo brake, machine body with steel frame, column movement system driven by a brushless motor, cooling system and other advanced components. When combined with single pass honing tools, these machines deliver high precision and productivity. The DVSS machines are easy to use and also require little maintenance. They are suitable for high productions of precision hole components.
Characteristics
| DVSS | |
|---|---|
|
Velocità mandrino per 6 mandrini indipendenti Spindle speed for 6 independent spindles |
1- 2500 rpm |
|
Potenza motore mandrino (6 motori indipendenti) Spindle motor power (6 independent engines) |
0,75Kw cad. |
|
Velocità Stroke Stroke speed |
0- 105 mm / sec |
|
Lunghezza corsa Stroke lenght |
720 mm |
|
Potenza motore corsa Stroke engine power |
2.5 kw (AC SERVO MOTORE) |
|
Velocità rotazione del tavolo Table rotation speed |
0-3 m / min |
|
Potenza del motore tavola Table Engine power |
0.75 kw |
|
Codice abrasivi Abrasive code |
Granulometria |
| D1 | 60 - 70 |
| D3 | 100 - 120 |
| D5 | 200 - 230 |
| D7 | 240 - 300 |
| D8 | 325 - 400 |
| D0 | 600 |
| D00 | 1200 |
TECHNICAL INFORMATION
Work Area
1. Standard cooling tank: 300 L, filter with magnetic separator
2. Optional DNO-A, belt filter with magnetic roller
Oscillation
Motor power: 4.2 kW, Stroke speed: 1-40 m/min
Electrical Control System
Siemens S7 Series PLC control system
Workpiece Fixing
1. Standard V-clamping
2. Maximum diameter of clamped workpiece 550 mm.
3. Chain vice
Spindle
1. Motor power: 5.5 kW. Spindle speed: 10-350 rpm
2. Three-phase transmission and variable speed motor with friction clutch
Abrasive
1. Automatic stone expansion
2. Setting the working load with safety limits and alarm
Cooling System
1. Standard cooling tank: 300 L, filter with magnetic separator
2. Optional DNO-A, belt filter with magnetic roller
If you need more information about any of our products or services, please do not hesitate to contact us
Our team is at your disposal to answer your questions and provide you with all the information necessary to satisfy and clarify your every need.
Related accessories
Accessories
Cooling Systems

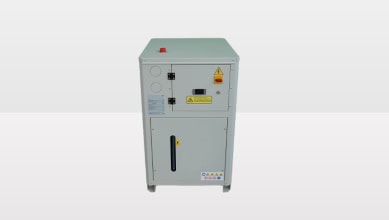

A cooling system combined with a honing machine allows the lubricant used to maintain a constant temperature during each processing phase .
